Time Picker Card by @georgesg

Overview

This is a Time Picker card for Home Assistant's Lovelace UI.

Requires an Input Datetime that has time (has_time: true).

Screenshots

Default config - card name shown, 24 hour mode

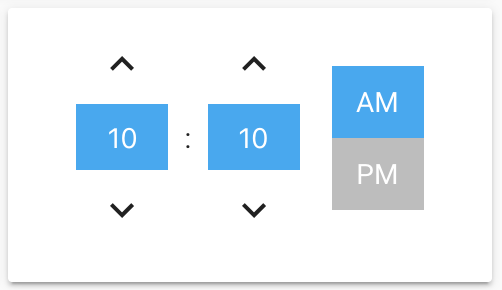

Custom config - hidden card name, 12 hour mode

Custom config - hidden card name, 12 hour mode with a "single" hour mode picker

Using a custom theme

Installation

Install using HACS or follow this guide

resources:
  - url: /local/time-picker-card.js
    type: module

Usage

type: 'custom:time-picker-card'
entity: input_datetime.alarm_time
name: 'Choose a time'
hour_mode: 24
hour_step: 1
minute_step: 5
hide:
  name: false

Options

Name	Type	Requirement	Description	Default
type	string	Required	custom:time-picker-card
entity	string	Required	Input Datetime entity with has_time: true
name	string	Optional	Card name	Entity's friendly_name
hour_mode	12 or 24	Optional	Hour format. If 12, card will show AM/PM picker	24
hour_step	number	Optional	Hour change when clicking arrows	1
minute_step	number	Optional	Minute change when clicking arrows	5
layout	object	Optional	Card Layout configuration	none
hide	object	Optional	Hide object	none

Layout Object

Name	Type	Requirement	Description	Default
hour_mode	single or double	Optional	Whether to show both AM/PM or just the current mode. In single mode, tap the value to change it.	double

Hide Object

Name	Type	Requirement	Description	Default
name	boolean	Optional	Hides the card name	false

Theme Variables

Time Picker card will automatically pick up colors from your lovelace theme, but if you want to customize some of them, you can use the following theme variables:

Name	Default	Description
--time-picker-elements-background-color	var(--primary-color)	Background color for header and inputs
--time-picker-icon-color	var(--primary-text-color)	Arrow color
--time-picker-text-color	white	Text color
--time-picker-accent-color	var(--primary-color)	AM / PM active color
--time-picker-off-color	var(--disabled-text-color)	AM / PM inactive color
